1.1OEL9M1003-L3-E
發布時間：2014-05-28 瀏覽次數：11883
- 詳情介紹
- 技術參數
- 產品應用

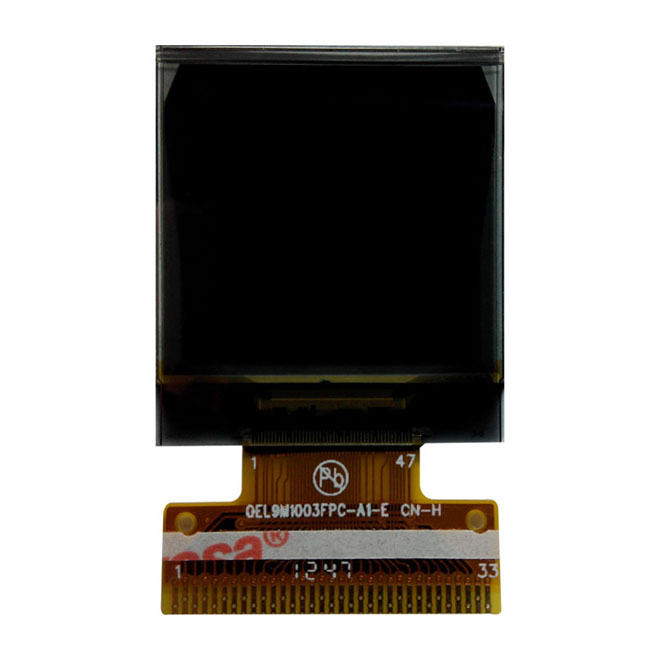

1.1″OEL9M1003-L3-E
| Item | Specification |
| Resolution | 96(H) xRGBx96(V) |
| Display Format | 9,216 Pixels |
| Active Area | 19.85(W) x 19.85(H) mm |
| Outline Dimension (Panel) | 25.49(W) x 29.10(H) mm |
| Pixel Pitch | 0.207(W) x 0.207(H) mm |
| Pixel Size | 0.177(W) x 0.182(H) mm |
| Encapsulation type | Glass Can |
| Display color | 65K |
| IC package type | COG |
| Thickness | 1.45 mm MAX |
| Weight | <2.3g |
| Duty | 1/96 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
